GitLab Feature Flags via Kubernetes Operator¶

Overview¶

This document describes the Feature Flags architecture used in the ICVR infrastructure. Feature flags are managed in the GitLab UI and automatically delivered to Kubernetes workloads via a custom GitLab Feature Flags Operator.

Key properties:

Feature flags are created and toggled in GitLab (Project > Deploy > Feature flags)
The Kubernetes operator watches GitLabFeatureFlags custom resources and syncs flag states into Kubernetes Secrets
Applications read FF_* environment variables at runtime via envFrom: secretRef
Flags are per-environment: each overlay resolves its own GitLab environment_scope (see Environment Scope Resolution)
Flag changes propagate without redeployment (operator updates Secrets, Stakater Reloader restarts pods)
Feature flags are NOT promoted during environment promotion

Architecture¶

--- config: layout: elk --- flowchart LR A["GitLab Feature Flags UI (Project > Deploy > Feature flags)"] B["GitLab Feature Flags Operator (Kopf/Python) ns: gitlab-feature-flags-operator"] C["Application Pod (envFrom: secretRef) FF_NEW_UI=true FF_DARK_MODE=false FF_BETA_API=true"] D["Application Code os.environ.get("FF_*")"] A -->|"GitLab API (polling, per refreshInterval)"| B B -->|"Reads ClusterGitLabStore + auth Secret"| C B -->|"Creates/updates Secrets with FF_* keys"| C C -->|"Stakater Reloader detects Secret change → pod restart"| D

Custom Resources¶

CRD	Scope	Short Name	Purpose
`ClusterGitLabStore`	Cluster	`cgls`	Connection to a GitLab instance (URL + auth token Secret)
`GitLabStore`	Namespaced	`gls`	Same but limited to one namespace
`GitLabFeatureFlags`	Namespaced	`glff`	Which project's flags to sync and where to write the Secret

All CRDs belong to the API group icvr.xyz/v1alpha1.

Operator Deployment¶

The operator is deployed via ArgoCD as a Helm chart in a dedicated namespace.

Namespace¶

apiVersion: v1
kind: Namespace
metadata:
  name: gitlab-feature-flags-operator

Helm Chart¶

Parameter	Value
Chart	`gitlab-feature-flags-operator`
Version	`1.1.19-prod`
Registry	`oci:~/~/harbor.infra.xavier.icvr.xyz/infra`
Namespace	`gitlab-feature-flags-operator`
CRDs	Included (`GitLabStore`, `ClusterGitLabStore`, `GitLabFeatureFlags`)

Configuration (values.yaml)¶

clusterStores:
  - name: icvr
    url: "https://git.icvr.io"
    auth:
      existingSecret: "gitlab-token"
image:
  registry: harbor.infra.xavier.icvr.xyz/infra
  repository: devops/gitlab-feature-flags-operator
  tag: "0.1.0b11"
imagePullSecrets:
  - name: harbor-credentials

The clusterStores list creates ClusterGitLabStore resources. Each store points to a GitLab instance and references a Secret containing the PRIVATE-TOKEN.

Secrets¶

Two ExternalSecrets (sourced from HashiCorp Vault via ClusterSecretStore: vault-icvr):

Secret	Purpose	Vault Path
`gitlab-token`	GitLab API authentication (`PRIVATE-TOKEN`)	`iac/gitlab_ff_operator`
`harbor-credentials`	Harbor container registry pull credentials (`.dockerconfigjson`)	`iac/harbor/imagePullSecret`

ArgoCD Repository Structure¶

xvr.argocd/apps/gitlab-feature-flags-operator/
├── base/
│   ├── kustomization.yaml      # Helm chart + resources
│   ├── namespace.yaml          # Namespace: gitlab-feature-flags-operator
│   ├── secret.yaml             # ExternalSecrets (Vault → K8s)
│   └── values.yaml             # Operator configuration
└── overlays/
    ├── dev/kustomization.yaml  # resources: [../../base]
    ├── dft/kustomization.yaml
    ├── tst/kustomization.yaml
    ├── stg/kustomization.yaml
    └── prd/kustomization.yaml

All environment overlays reference only the base — the operator deployment is identical across environments.

Operator RBAC¶

The Helm chart creates a ClusterRole with permissions to:

icvr.xyz resources: get, list, watch, patch, update (including /status)
Secrets: get, create, update, patch (to write flag values)
Namespaces: get (for environment scope inference from labels)
Events and Leases: create, patch, update (leader election, audit)

How Feature Flags Work¶

Creating a Feature Flag in GitLab¶

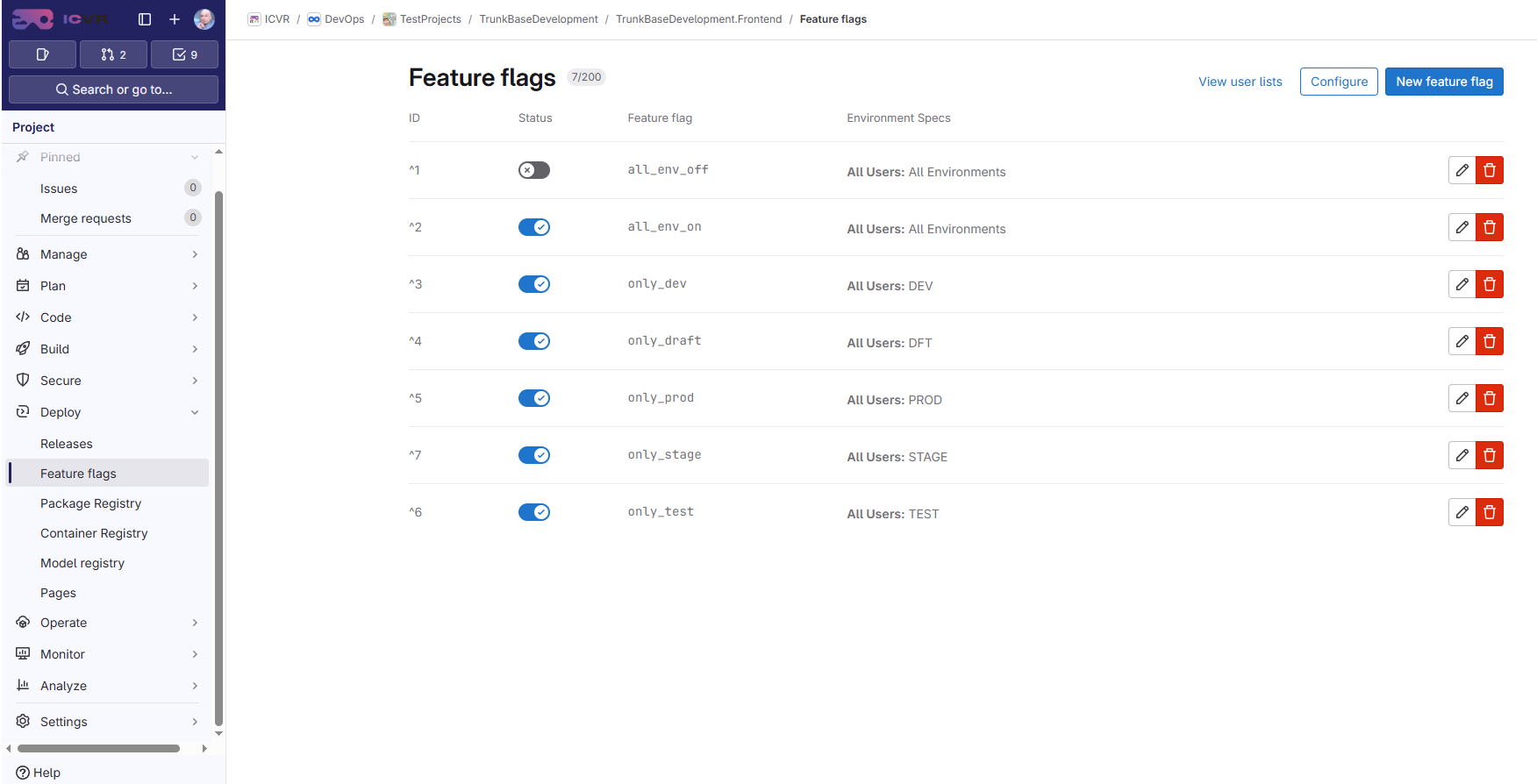

Navigate to your GitLab project: Deploy > Feature flags
Click New feature flag
Set the flag name (lowercase letters, digits, _ and -; must start with a letter)
Configure strategies per environment scope:
1. All users — flag is enabled for everyone
2. Percent of users — gradual rollout
3. User IDs — specific users only
4. User list — predefined groups
Save the feature flag

Info

Naming convention: The operator transforms flag names to FF_{UPPERCASE_NAME} environment variables. Non-alphanumeric characters become underscores. Example: flag my-dark-mode becomes FF_MY_DARK_MODE=true|false.

To toggle the same logical flag independently per environment, use the --<env> postfix convention (e.g. maintenance_mode--dev, maintenance_mode--prd). The operator strips everything from the first -- onward, so both resolve to FF_MAINTENANCE_MODE. See Flag Naming Conventions.

Operator Synchronization¶

The operator periodically polls the GitLab Feature Flags API (/api/v4/projects/:id/feature_flags) for each GitLabFeatureFlags CR and:

Reads the current state of all feature flags (paginated, 100 per page)
Filters flags by environment_scope (only active flags with matching scope)
Maps flag states to FF_FLAG_NAME=true or FF_FLAG_NAME=false
Creates or updates a Kubernetes Secret in the application's namespace
Skips update if data is unchanged (no unnecessary churn)

The Secret carries:

Label reconcile.gitlab-feature-flags.icvr.xyz/managed: "true"
Annotation argocd.argoproj.io/compare-options: IgnoreExtraneous (ArgoCD ignores operator-managed keys)
Owner reference to the GitLabFeatureFlags CR (garbage-collected on CR deletion)

Application Consumption¶

Applications consume feature flags by reading FF_* environment variables. No GitLab SDK or Unleash client is needed.

Python example:

import os
def get_feature_flags():
    """Collect all FF_* environment variables into a dict.
    Returns: {"FF_ONLY_DEV": True, "FF_ALL_ENV_OFF": False, ...}
    """
    return {
        key: value.lower() == "true"
        for key, value in os.environ.items()
        if key.startswith("FF_")
    }

Usage in templates (Jinja2):

{% if feature_flags %}
<div class="flags">
    {% for name, enabled in feature_flags.items()|sort %}
    <span class="flag-badge {{ 'flag-on' if enabled else 'flag-off' }}">
        {{ name }}
    </span>
    {% endfor %}
</div>
{% endif %}

Usage in application logic:

flags = get_feature_flags()
if flags.get("FF_NEW_DASHBOARD"):
    return render_template("dashboard_v2.html")
else:
    return render_template("dashboard.html")

Environment Scope Resolution¶

Feature flags are per-environment. The GitLab environment_scope determines which flag strategies apply. The scope is resolved at two levels:

Helm Chart Side (base-deployment-chart)¶

When a GitLabFeatureFlags CR is rendered by the Helm chart, the spec.environmentScope is resolved with this priority:

For root-level (common) CR:

gitlabProjectId.environmentScope — explicit scope in the project config map
gitlabProjectId.deploymentEnvironment — environment token mapped via table below
featureFlagsEnvironmentScope — explicit global override
deploymentEnvironment — root-level environment token mapped via table below
Empty (omitted) — operator infers at runtime

For per-app CR:

applications[i].gitlabProjectId.environmentScope — explicit app scope
applications[i].deploymentEnvironment — app-level token
featureFlagsEnvironmentScope — global override
deploymentEnvironment — root-level token
Empty (omitted) — operator infers at runtime

Deployment environment → GitLab scope mapping:

Input token (case-insensitive)	GitLab scope
`DEV`, `DEVELOPMENT`	`dev`
`TEST`, `TST`	`tst`
`STAGE`, `STG`	`stg`
`DRAFT`, `DFT`	`dft`
`PROD`, `PRD`, `PRODUCTION`	`prd`
Empty, `pathBase`, `~_~_PATH_BASE~_~_`	(omitted — operator infers)
Any other non-empty value	`*` (wildcard)

Operator Side (runtime inference)¶

When spec.environmentScope is absent or * in the CR, the operator resolves it at runtime using an 8-step chain:

Explicit spec.environmentScope — if non-empty and not *, use directly
Namespace label gitlab-feature-flags.icvr.xyz/environment
Namespace label icvr.xyz/deployment-environment
ArgoCD tracking-id annotation on the namespace — extracts app name, scans segments for env keywords
Namespace name segments (right-to-left) — e.g. tbd-test-frontend-stg → stg
CR label app.kubernetes.io/instance (last segment only)
CR name segments (right-to-left)
Operator env var GITLAB_FF_DEFAULT_ENVIRONMENT_SCOPE — cluster-wide fallback
Fallback: * (wildcard, matches all scopes)

Info

In practice, the Helm chart's deploymentEnvironment value (set per Kustomize overlay) handles most cases. The operator inference chain is a safety net for zero-config scenarios.

Per-Environment Flag States¶

Environment	Scope	Flag State	Use Case
DFT	`dft`	`FF_NEW_DASHBOARD=true`	Test new features after deploy
DEV	`dev`	`FF_NEW_DASHBOARD=true`	Validate in development
TST	`tst`	`FF_NEW_DASHBOARD=false`	Regression testing with flag off
STG	`stg`	`FF_NEW_DASHBOARD=true`	Validate before production
PRD	`prd`	`FF_NEW_DASHBOARD=false`	Not yet released

Warning

Feature flags are NOT copied during environment promotion. When you promote DEV → TST, only image.tag is copied. Feature flag states remain as configured per environment scope in GitLab. This prevents accidental activation of features in higher environments.

Integrating Feature Flags into a Workload¶

Minimal Configuration¶

Add gitlabProjectId to the application in your overlay values.yaml:

# Root-level: one shared flags Secret loaded by all apps
gitlabProjectId: 1217

Or per-application:

applications:
  - name: portal
    gitlabProjectId: 1217

That's it. The base-deployment-chart will:

Render a GitLabFeatureFlags CR (icvr.xyz/v1alpha1)
Inject the resulting Secret via envFrom: secretRef into the pod
Add a checksum annotation + reloader.stakater.com/auto: "true" so pods restart on flag changes

Advanced Configuration¶

# Environment token — mapped to GitLab scope (see section 5)
deploymentEnvironment: DEV
# Optional: explicit scope override (bypasses mapping)
# featureFlagsEnvironmentScope: "staging"
# Defaults for all GitLabFeatureFlags CRs
gitlabFeatureFlagsDefaults:
  storeRef:
    name: icvr
    kind: ClusterGitLabStore
  refreshInterval: "5m"
# Root-level (scalar)
gitlabProjectId: 12345
# — or root-level (map with overrides) —
# gitlabProjectId:
#   projectId: 12345
#   environmentScope: "staging"   # highest priority
#   storeRef: { name: icvr, kind: ClusterGitLabStore }
#   refreshInterval: "5m"
applications:
  - name: api
    # Per-app project (creates a separate CR + Secret)
    gitlabProjectId: 1327
    # Optional per-app override
    # deploymentEnvironment: PRD

What Gets Rendered¶

For each gitlabProjectId (root or per-app), the chart creates:

Level	CR Name	Target Secret	envFrom on pods
Root (common)	`{release}-common-ff`	`{release}-common-ff-secrets`	All Deployment pods
Per-app	`{release}-{app}-ff`	`{release}-{app}-ff-secrets`	That app's pods only

The CR spec includes:

apiVersion: icvr.xyz/v1alpha1
kind: GitLabFeatureFlags
metadata:
  name: docs-dev-portal-ff
  annotations:
    argocd.argoproj.io/sync-wave: "0"
spec:
  storeRef:
    name: icvr
    kind: ClusterGitLabStore
  gitlabProjectId: 1217
  environmentScope: "dev"          # resolved from deploymentEnvironment
  targetSecretName: docs-dev-portal-ff-secrets
  refreshInterval: "5m"

Real-World Example: docs/portal¶

xvr.argocd/workloads/docs/portal/
├── base/
│   ├── kustomization.yaml
│   └── namespace.yaml          # ns: docs
└── overlays/
    ├── dev/
    │   ├── kustomization.yaml  # base-deployment-chart v1.1.18-prod
    │   └── values.yaml         # gitlabProjectId: 1217
    ├── dft/
    │   ├── kustomization.yaml
    │   └── values.yaml         # gitlabProjectId: 1217
    └── prd/
        ├── kustomization.yaml
        └── values.yaml         # gitlabProjectId: 1217

All overlays use the same GitLab project (1217). The environment scope is resolved automatically from the overlay context (namespace labels, ArgoCD tracking-id, or namespace name).

Lifecycle of a Feature Flag¶

1. CREATION
   Developer creates flag "new_feature" in GitLab UI
   → Operator picks up the flag on next poll (≤ refreshInterval)
   → Secret updated in target namespace
   → Reloader detects change → pod restarts
   → FF_NEW_FEATURE=true available as env var
2. TESTING
   Enable flag in DFT/DEV environment scopes
   → Test feature with flag on
   → Test regression with flag off
   → Gradually enable in TST, STG
3. FULL ROLLOUT
   Enable flag in PRD scope
   → Feature available to all production users
4. CLEANUP
   Remove flag checks from code
   → Deploy code without flag dependency
   → Delete flag from GitLab UI
   → Operator removes key from Secret on next sync

Info

Important: Always clean up feature flags after full rollout. Stale flags accumulate technical debt. A flag that has been enabled in all environments for more than 2 sprints should be considered for removal.

Flag Naming Conventions¶

GitLab Flag Name	Env Var	Use Case
`new_dashboard`	`FF_NEW_DASHBOARD`	Feature toggle
`beta_api_v2`	`FF_BETA_API_V2`	Versioned feature
`enable_cache`	`FF_ENABLE_CACHE`	System capability toggle
`show_banner`	`FF_SHOW_BANNER`	UI visibility toggle
`maintenance_mode--dev`	`FF_MAINTENANCE_MODE`	Per-environment variant (dev)
`maintenance_mode--prd`	`FF_MAINTENANCE_MODE`	Per-environment variant (prd)

Rules:

Flag names in GitLab: lowercase, digits, _ and -, must start with a letter
The FF_ prefix and uppercasing are applied automatically by the operator
Non-alphanumeric characters in the flag name become underscores (e.g. my-flag → FF_MY_FLAG)
Everything from the first -- onward is stripped before computing the env var key (e.g. my_flag--dev → FF_MY_FLAG)
Single dashes are not stripped — my-flag-dev → FF_MY_FLAG_DEV (the - becomes _)
Flags with the same base name are OR-merged: if any variant is active for the resolved environment scope, the env var is true
Flags whose name consists entirely of a postfix (e.g. --dev) are skipped with a warning

Per-Environment Variants¶

GitLab enforces unique flag names per project. To control the same logical flag per environment independently, create variants using the --<env> postfix:

maintenance_mode--dev   →  FF_MAINTENANCE_MODE  (active only in dev scope)
maintenance_mode--dft   →  FF_MAINTENANCE_MODE  (active only in dft scope)
maintenance_mode--tst   →  FF_MAINTENANCE_MODE  (active only in tst scope)
maintenance_mode--stg   →  FF_MAINTENANCE_MODE  (active only in stg scope)
maintenance_mode--prd   →  FF_MAINTENANCE_MODE  (active only in prd scope)

In each GitLab flag variant, set the strategy's Environment scope to match only that environment (e.g. dev for --dev). The operator then selects the matching variant and writes a single FF_MAINTENANCE_MODE key into the Secret.

Tip

The postfix after -- is purely a GitLab naming workaround — the actual environment filtering is done by the GitLab strategy environment_scope. Keep the postfix consistent with the scope to avoid confusion.

Infrastructure Components¶

Component Map¶

Component	Location	Purpose
GitLab Feature Flags UI	`Project > Deploy > Feature flags`	Create, toggle, and manage flags
GitLab Feature Flags API	`/api/v4/projects/:id/feature_flags`	Programmatic access (polled by operator)
Kubernetes Operator	`gitlab-feature-flags-operator` namespace	Sync flags from GitLab to K8s Secrets
Operator Helm Chart	`oci:~/~/harbor.infra.xavier.icvr.xyz/infra` v1.1.19-prod	Operator deployment + CRDs
Base Deployment Chart	`oci:~/~/harbor.infra.xavier.icvr.xyz/infra` v1.1.18-prod	Renders `GitLabFeatureFlags` CRs and injects Secrets into pods
ClusterGitLabStore: icvr	Cluster-scoped	GitLab connection (`https:~/~/git.icvr.io`) + auth reference
Vault Secrets	`ClusterSecretStore: vault-icvr`	GitLab API token and Harbor credentials
Stakater Reloader	Cluster service	Restarts pods when referenced Secrets change
ArgoCD	`xvr.argocd/apps/gitlab-feature-flags-operator/`	Operator deployment management

Backup¶

The gitlab-feature-flags-operator namespace is included in the Velero backup schedule, ensuring the operator state is recoverable in case of cluster failure.

Adding Feature Flags for Local Development¶

For local development, use a .env file to define your feature flags:

# .env
FF_NEW_DASHBOARD=true
FF_BETA_API=false
FF_SHOW_BANNER=true

Load them in your application startup (e.g. python-dotenv, docker --env-file .env, etc.).

Comparison with Alternatives¶

Approach	Pros	Cons
GitLab Operator (our approach)	No SDK needed; pure env vars; managed via GitLab UI; per-environment control; no app code changes to read flags	Depends on custom operator; polling delay (default 5 min)
Unleash SDK	Rich targeting rules; real-time updates; battle-tested	Requires SDK integration in every app; separate Unleash server
LaunchDarkly	Enterprise features; analytics; audit trail	SaaS dependency; expensive at scale; SDK per language
Static env vars	Simple; no moving parts	Requires redeployment to change; no toggle without redeploy
ConfigMap manual	Kubernetes-native	Manual; error-prone; no UI for non-DevOps

Diagram: Full Flow from Toggle to Application¶

sequenceDiagram participant G as GitLab UI participant O as K8s Operator participant A as Application Note over G,O: 1. Create flag new_ui=true (scope: dev) G->>O: API O->>O: 2. Poll GitLab /feature_flags O->>O: 3. Filter by env scope O->>A: 4. Update Secret FF_NEW_UI=true Note over A: 5. Stakater Reloader restarts pod FF_NEW_UI=true Note over G,O: 6. Toggle flag new_ui=false G->>O: API O->>A: 7. Update Secret FF_NEW_UI=false Note over A: 8. Pod restart FF_NEW_UI=false

ArgoCD manages the operator deployment and workload GitLabFeatureFlags CRs.
Vault provides secrets (GitLab token, Harbor credentials).
Stakater Reloader triggers pod restarts on Secret changes.
Velero backs up the operator namespace.
